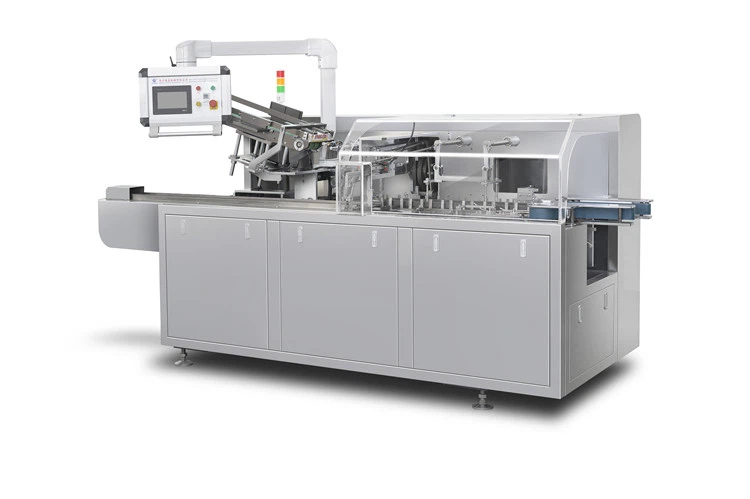

Compact Fully Automatic Small Horizontal Cartoning Machine
HDZ-100 lightweight small cartoner for mini cartons, speed 30–100 cartons/min, auto leaflet folding, tuck/hot melt dual sealing, PLC touch control, ideal cosmetic pharma mini packaging lines.【Compact Small Horizontal Cartoning Machine | Mini Cosmetic Medicine Box Packer】
Product Overview
The HDZ-100 lightweight mini horizontal cartoner is specially engineered for tiny retail cartons, adopting precision fiber-optic, electrical and pneumatic coordinated transmission. It completes full secondary packaging workflow without manual intervention, drastically cutting packing labor costs for small-batch multi-SKU factories. This compact unit integrates carton erection, leaflet auto folding, product feeding, batch coding, carton shaping, tuck-in sealing (hot melt glue optional), photoelectric inspection and defective rejection. With lightweight frame and small footprint, it fits limited-space workshops perfectly. It can operate standalone or link inline with blister machines, pillow packers, inkjet coders and shrink wrappers to build compact unmanned packaging lines for pharmaceuticals, cosmetics, snacks and sanitary goods.
Compatible Raw Materials & Carton Range
- Carton board: 280–350 g/m² lightweight packaging cardboard
- Instruction leaflet paper: 55–65 g/m²
- Max leaflet size: 260 × 190 mm | Min leaflet size: 100 × 100 mm
- Adjustable carton inner dimension: L65–200 × W35–80 × H15–75 mm
- Applicable industries: Pharmacy, cosmetics, food, hardware, sanitary napkins, mini facial tissue packs
Full Automated Production Flow
- Vacuum suction flat carton storage & automatic erection
- Instruction leaflet auto folding & feeding station
- Synchronized mechanical product pushing into mini cartons
- Real-time batch number inkjet printing
- Carton shaping + standard tuck-in flap sealing (hot melt glue optional)
- Photoelectric missing product / missing leaflet detection
- Defective carton automatic rejection
- Qualified mini carton finished output
Six Core Competitive Advantages
1. Ultra-Light Compact Frame
Only 1300 KG net weight, smaller overall size than other cartoners, saves valuable workshop floor space for small factories.
2. Precision Fiber-Optic Coordination
Fiber-optic sensing + servo transmission ensures ultra-stable feeding, low jamming rate for narrow tiny cartons.
3. Multilingual PLC Touch Control
Chinese & English bilingual touch HMI, stepless frequency speed regulation, visualized parameter adjustment with zero complicated operation.
4. Reliable Global Electrical Components
Standard international brand electrical parts for long-term stable running and low breakdown frequency.
5. Dual Sealing Optional Solution
Standard tuck-in flap sealing for daily goods; customizable hot melt glue spraying module for airtight moisture-proof packaging.
6. Full Production Line Docking Compatibility
Seamless online linkage with blister packers, filling machines, labeling equipment and post shrink packaging machines.
Performance Technical Parameter
|
Model |
HDZ-100 |
|
Paper quality of carton |
280-350g/m2 (Based on the size of the paper box) |
|
Packing specification |
L65-200mm×W35-80mm×H15-75mm (Can be adjusted according to product specifications) |
|
Packing speed |
30-100(boxes/minute) |
|
Folding machine speed |
30-100(boxes/minute) |
|
Manual paper requirements |
55-65g/m2 |
|
Instruction manual paper specification |
Max=260x190mm;min=100x100mm |
|
Motor power |
1.5kw |
|
Total power |
2kw (There may be deviations in practice) |
|
Power supply type |
380V 50HZ/60HZ (3phase 5wire) |
|
Machine noise |
≦80dB |
|
Air supply |
0.5-0.8Mpa |
|
Air comsumption |
120-160L/min |
|
Machine weight |
1300kg |
Main Application Scenarios
- Pharmaceutical: Blister tablets, ointment tubes, mini medicine vials
- Cosmetics: Lipstick, mask trial packs, skincare mini sample boxes
- Food: Candy, chocolate, small snack gift cartons
- Sanitary products: Sanitary napkin small packs, mini tissue boxes
- Daily hardware: Tiny electronic parts, stationery retail cartons
